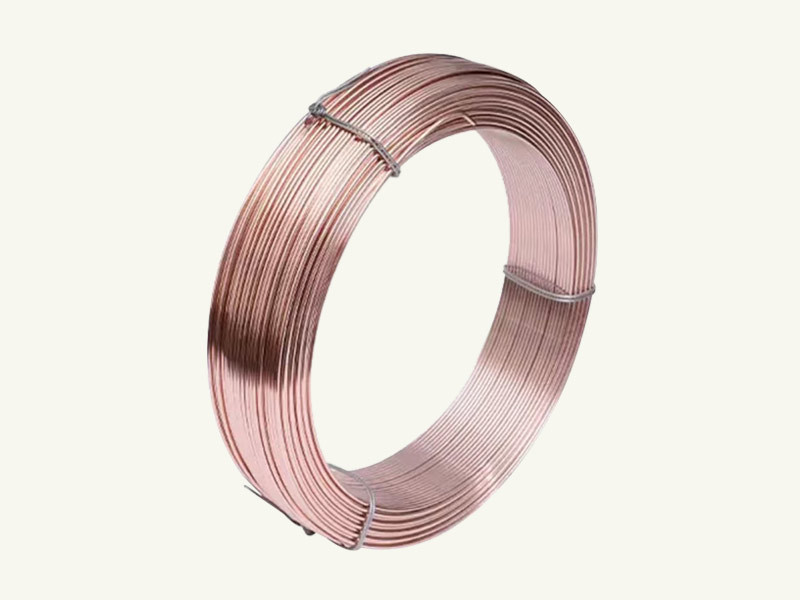

WD-H10Mn2/WD-EH14 Submerged arc welding wire
Subclassification：
· Submerged Arc Welding Wire
Enquiry hotline：
- Product description
-
- Commodity name: WD-H10Mn2/WD-EH14 Submerged arc welding wire
- Commodity ID: 20230112001
High manganese type wire, matched with low manganese and silicon flux, insensitive to rust on base material, excellent weld channel formation and slag removal performance.
Standards：
GB/T5293 SU34 AWS EH14
Introduction：
High manganese type wire, matched with low manganese and silicon flux, insensitive to rust on base material, excellent weld channel formation and slag removal performance. Single wire, double wire, AC and DC welding are available.
Applications：
Suitable for butt and fillet welding of mild steel and certain low alloy steel.
Reference value of chemical composition of welding wire and deposited metal (%)：
C
Mn
Si
S
P
Cu
Chemical composition of welding wire
≤0.12
1.50-1.90
≤0.07
≤0.03
≤0.03
≤0.20
Molten gold chemical composition
0.06
1.65
0.30
0.01
0.015
0.02
Reference values for mechanical properties of molten metal：
Yield strength
(MPa)Tensile strength
(MPa)Elongation
(%)KV2 (J)
-30°C
465
560
32
47
